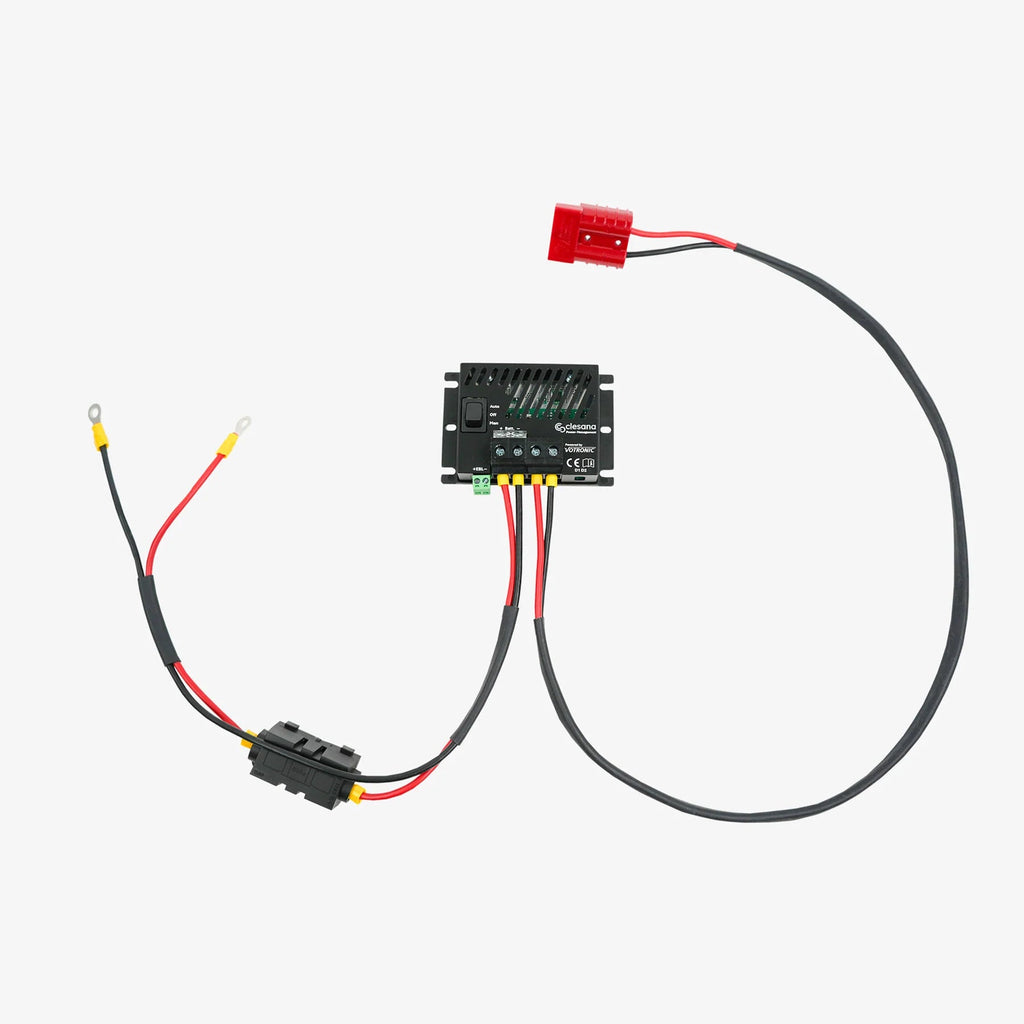

Clesana Power Management incl. cable

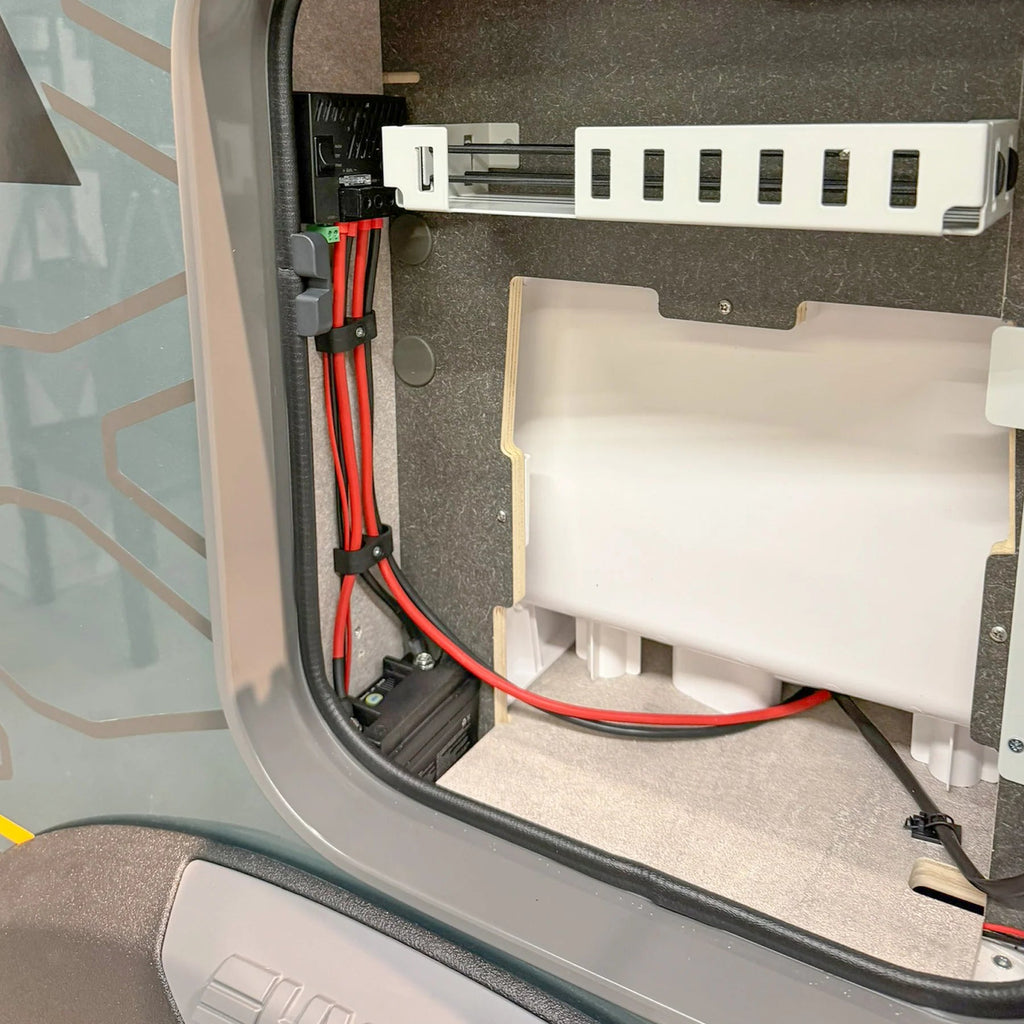

Simple electrical installation and even greater self-sufficiency! The Clesana Power Management combines the functions of a relay and a DC/DC charger. When combined with a backup battery, the Clesana C1 with the Clesana Power Management can be installed quickly and easily thanks to the pre-assembled cables. The control input enables the flow of current from the backup battery when the Clesana C1 is in use. When the Clesana C1 is in standby mode, the backup battery is charged with a 2A charging current via the Clesana Power Management. Control is easily achieved via a 12V permanent positive cable. Even if the on-board battery fails, the Clesana C1 can still be operated via the backup battery.

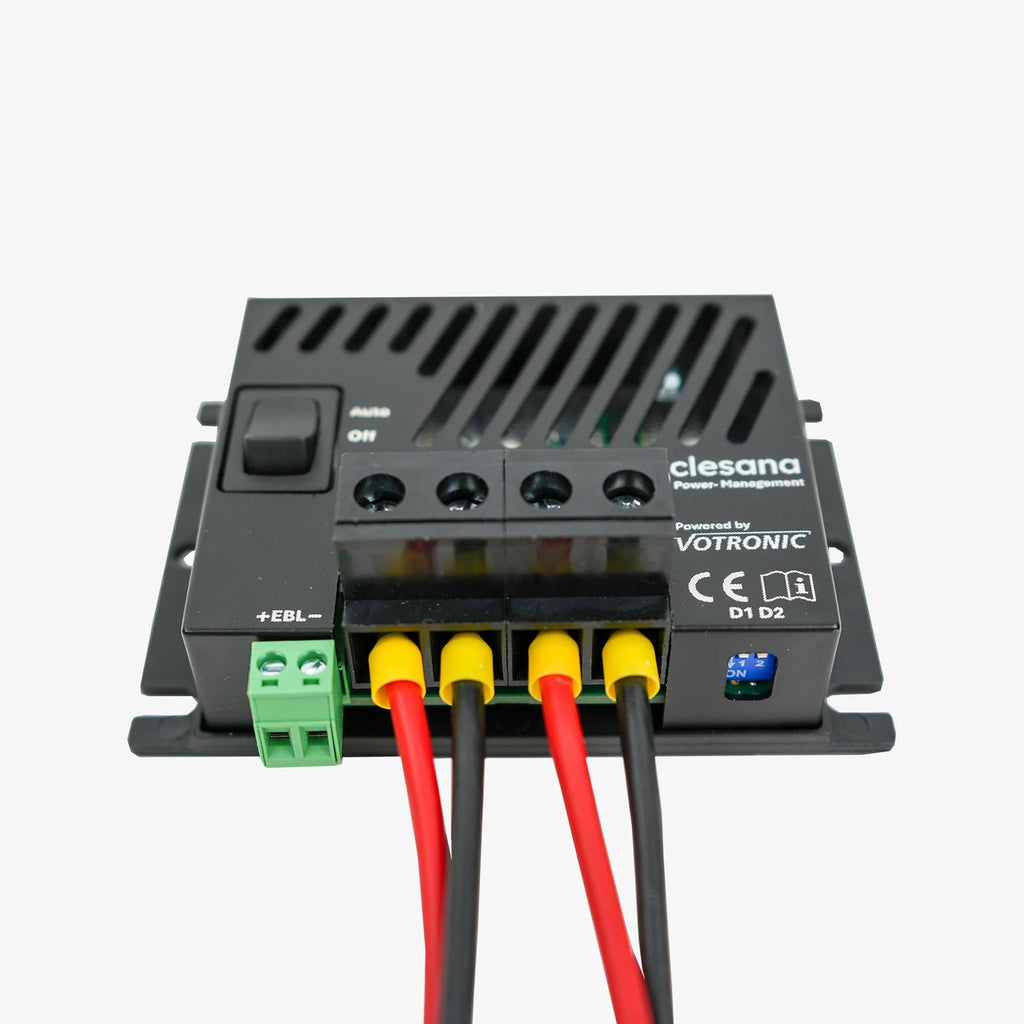

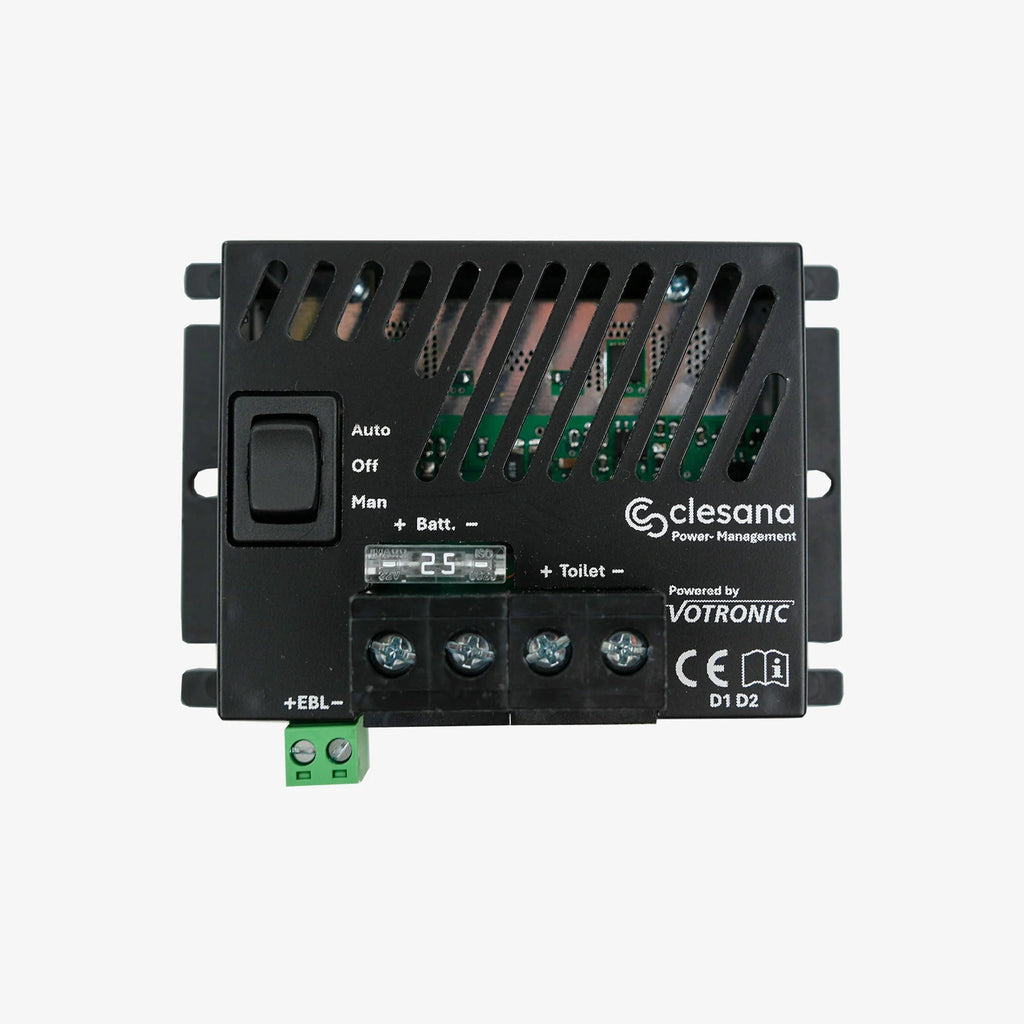

1x Clesana power management (by Votronic)

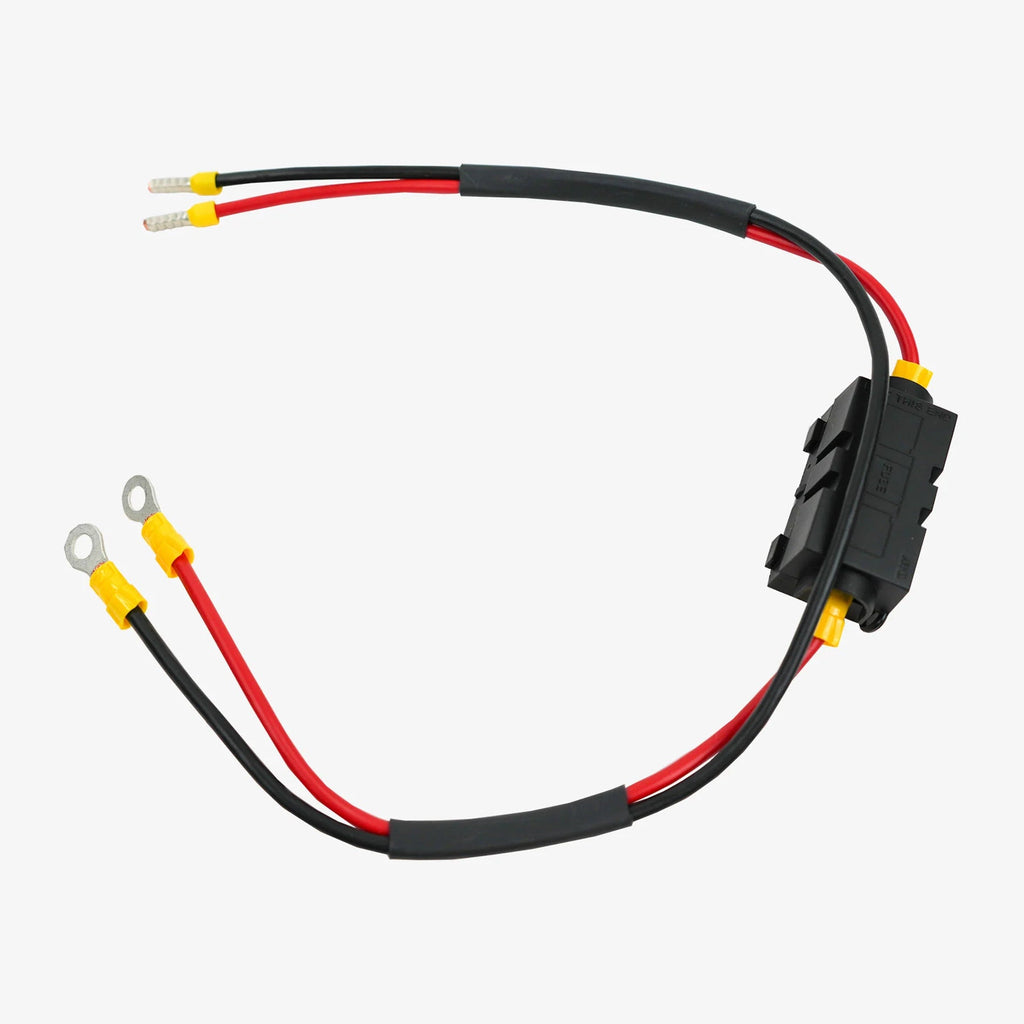

1x cable set battery cable including 30A cable fuse

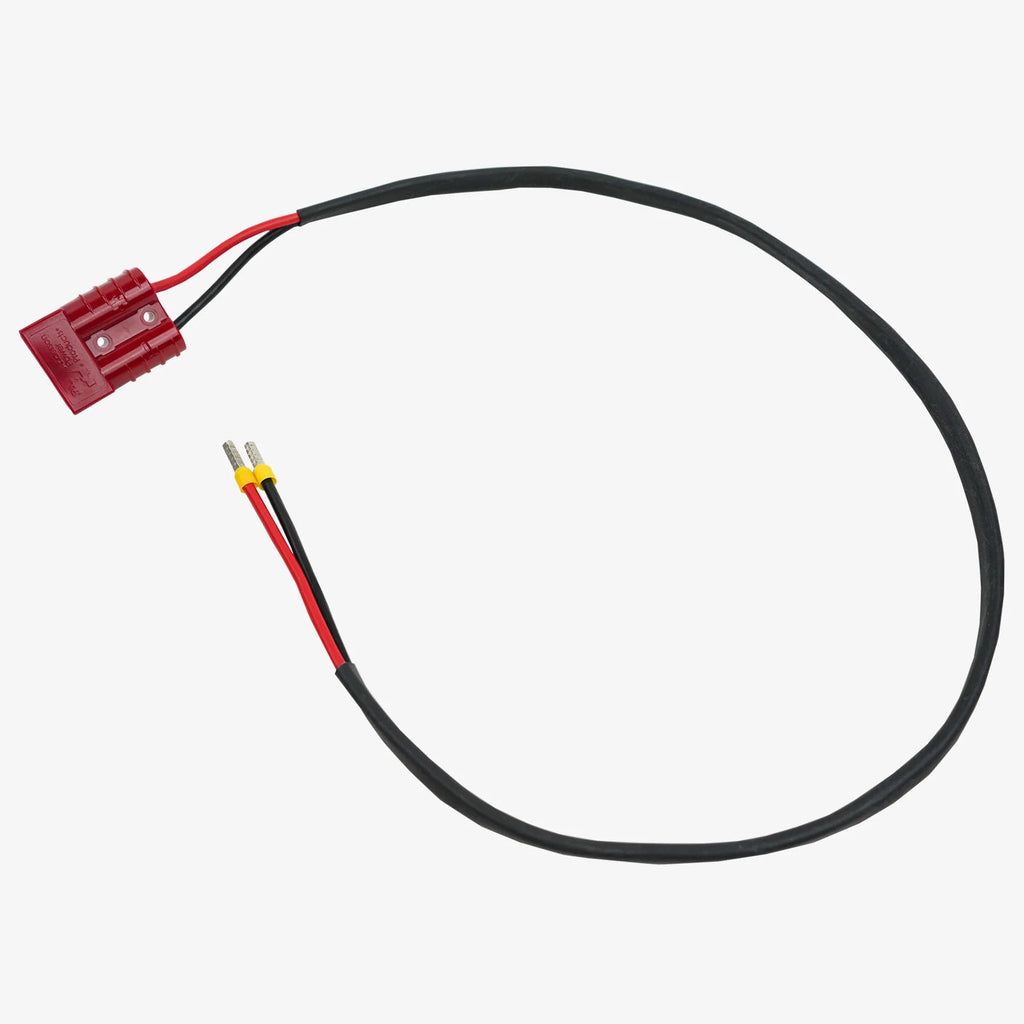

1x cable set toilet cable including contacts & plug
Backup battery not included in delivery!
Technical data
Nominal battery voltage 12 V
Input voltage range 10.5…14.8 V
Current consumption in standby 3 mA
max. current consumption 2.2 A
Recommended backup batteries
• Voltic Sportivo LI-02 3AH LTM9
• Exide LI-ION ELTX9 YTX9-BS
• Exide LI-ION ELT9B 3AH
