Clesana power management without cables
Clesana
Clesana power management without cables
An Lager: 1 Stück
✓ Versand in die Schweiz und nach Liechtenstein
✓ Beratung vom Fachmann: +41 81 552 00 01
✓ Einbau & Montage in unserer Werkstatt auf Anfrage
Minimize standby current! The Clesana Power Management can be used as a pure relay. The standby current is almost 10 times lower than that of the Clesana C1 (30 mA). Control is easily achieved via a 12 V permanent positive cable. As a further advantage, there is always the option of expanding the power management to include backup battery operation in the future.

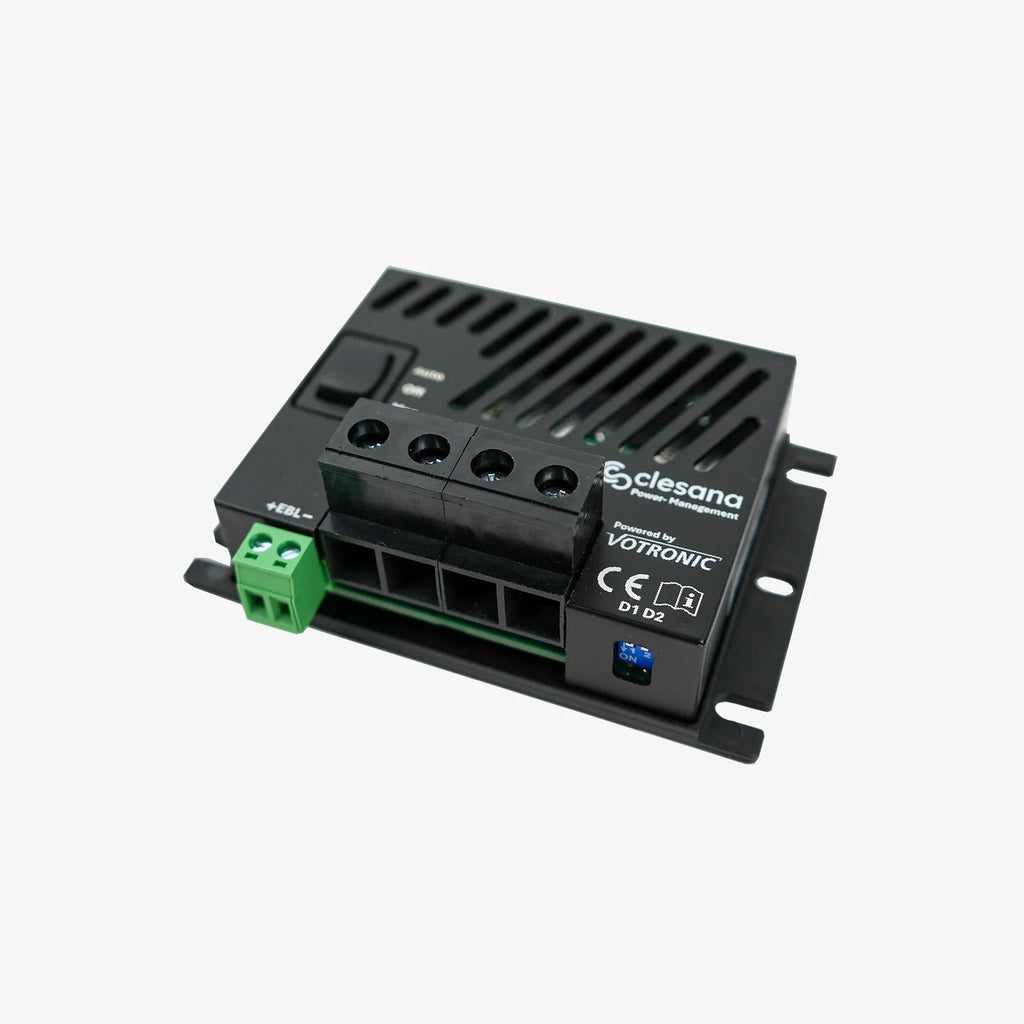

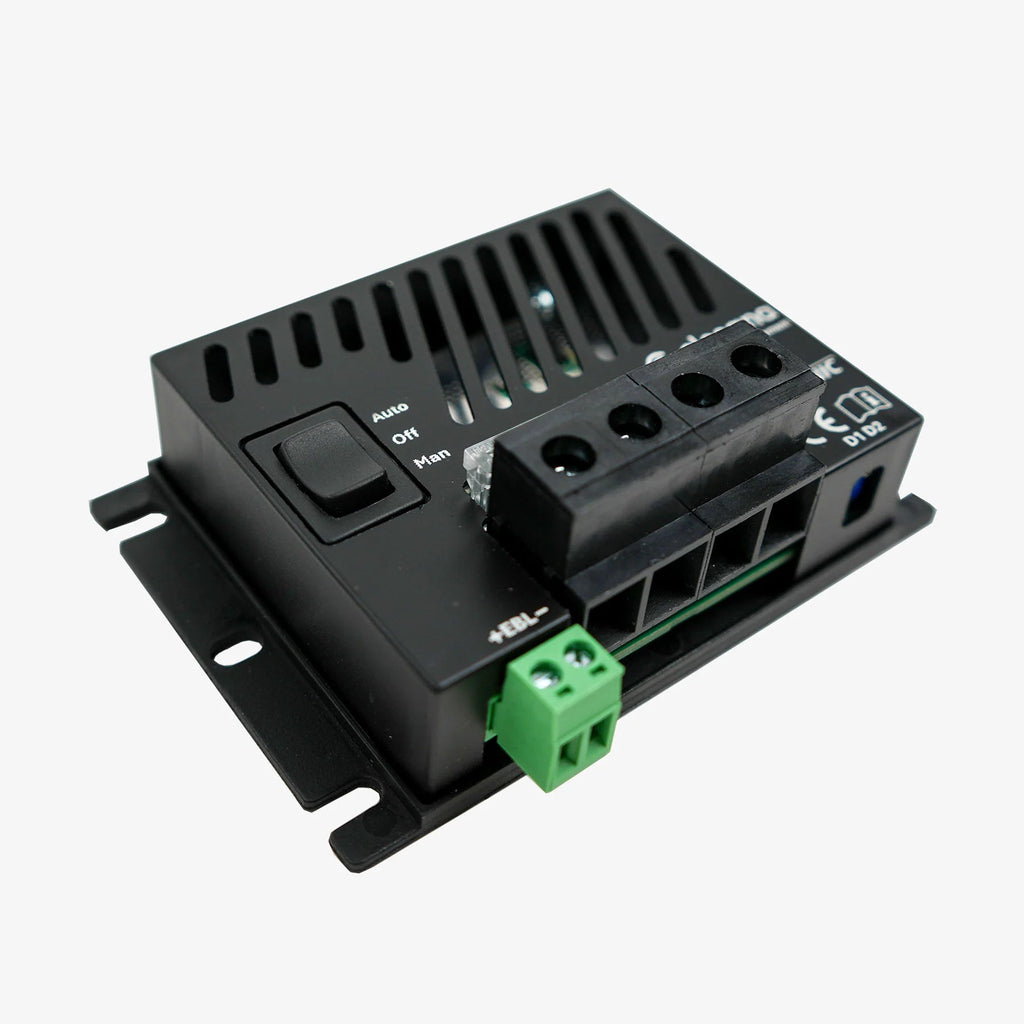

1x Clesana power management (by Votronic)
Backup battery & cable sets not included in delivery!
Technical data
Nominal battery voltage 12 V
Input voltage range 10.5…14.8 V
Current consumption in standby 3 mA
max. current consumption 2.2 A
Recommended backup batteries
• Voltic Sportivo LI-02 3AH LTM9
• Exide LI-ION ELTX9 YTX9-BS
• Exide LI-ION ELT9B 3AH
