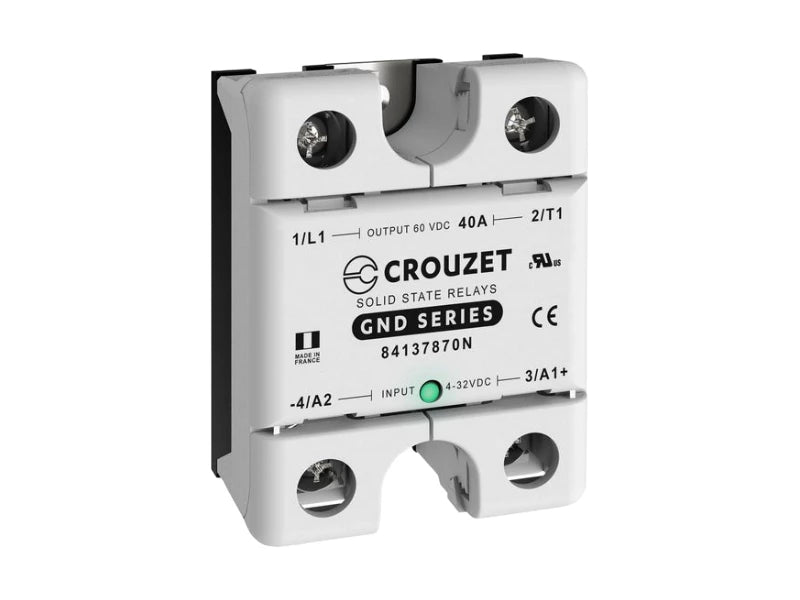

Crouzet solid state relay 84137870N 40 A
CHF 95.00
- Integrated, touch-proof and removable IP20 covers
- Integrated surge protection
- LED display for input status
| Product: | Single-phase relays |
| Type: | SSR Solid State Relays |
| Mounting type: | Panel Mount |
| Rated load current: | 40 A |
| Rated load voltage: | 5 VDC to 60 VDC |
| Relay contact type: | 1 Form A (SPST-NO) |
| Type of issue: | MOSFET |
| Control voltage range: | 4 VDC to 32 VDC |
| Input current: | 35 mA |
| Minimum operating temperature: | -25°C |
| Maximum operating temperature: | + 90°C |
| IP protection classes: | IP20 |
| Series: | GND |
| Length: | 59.4 mm |
| Width: | 44.5 mm |
| Height: |
29.1 mm |
| Circuit type: |
direct current |
| Weight: |
90g |
